SSE-X3348T
$9,921.00 Configured Summary
SSE-X3348T

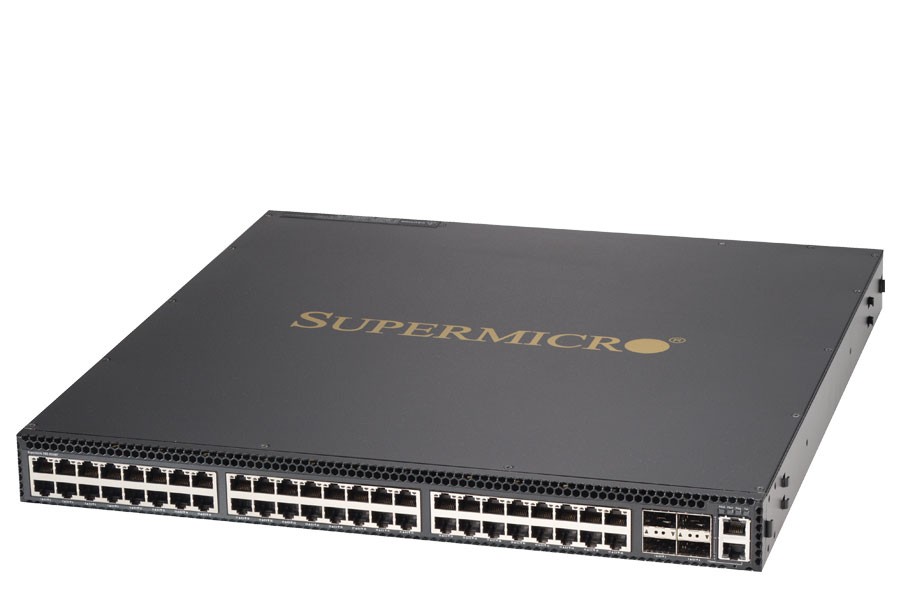

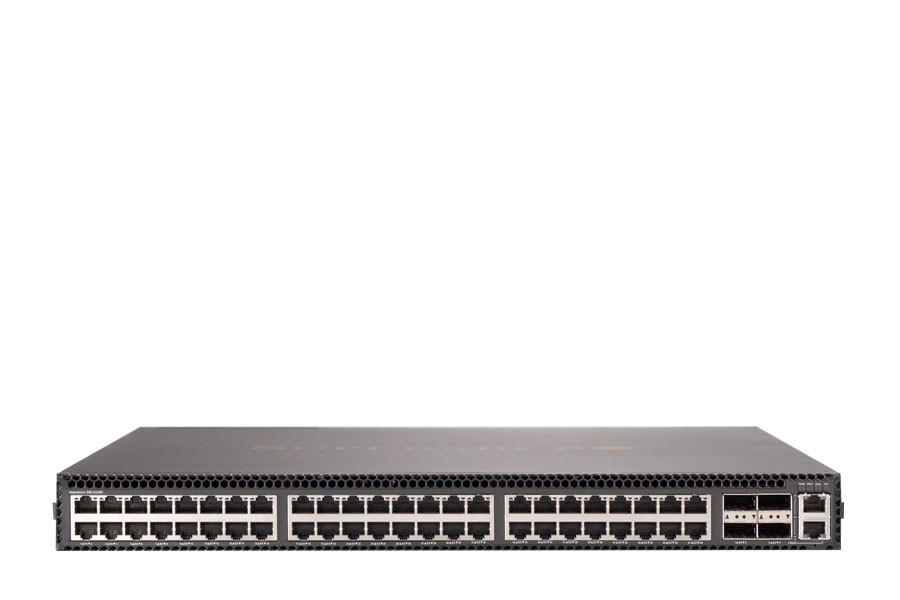

Supermicro 48 Ports 10G High Performance Ethernet Switch

Supermicro High-Performance, High Density, Advanced Switching Capabilities for Meeting 10-Gigabit Ethernet Networking Requirements scaling from Small Business to the Enterprise
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SSE-X3348T
Details
Switching Features:
 - Link Aggregation - 24 groups w/ 8 members per group
 - LACP Support
 - MLAG Support
 - Link Layer Discovery Protocol (802.1AB)
 - Jumbo Frame Support
 - Port Mirroring - N to 1. Tx & Rx Configurable

Routing Features:
 - Static Routing, RIP v1/v2, RIPng, OSPF v1/v2/v3 & BGP
 - IPv4 and IPv6 Routing
 - VRRP (Virtual Router Redundancy Protocol)
 - DVMRP (Distance Vector Multicast Routing Protocol

Port Attributes:
 - 48 10GBase-T Ten-Gigabit Ethernet ports - RJ45 Connectors
   * Energy Efficient Ethernet (IEEE 802.3az)
 - 4 Forty-Gigabit Ethernet ports -QSFP Connectors
 - 2 One-Gigabit Ethernet ports -RJ45 Connectors
 - Out-of-band RS-232 Management port

Performance:
 - Switching capacity: 1284 Gbps

Availability:
 - Spanning Tree (802.1D)
 - Rapid Spanning Tree (802.1w)
 - Multiple Spanning Trees (802.1s)
 - Virtual Redundant Routing Protocol (VRRP)

VLAN:
 - 802.1Q tagging, port and protocol based
 - 4K VLANs
 - Dynamic VLAN Support (GVRP)

Quality of Service and DiffServ:
 - 8 priority queues per port
 - Adjusted WRR and Strict Priority Scheduling
 - Layer 2 / 3 / 4 Prioritization
 - Marking
 - Metering / Rate limiting

Multicast:
 - IGMP Snooping v1/ v2/ v3
 - IGMP v1/ v2/ v3
 - PIM SM, PIM DM
 - PIM SMv6

Security:
 - 802.1x Port Based Authentication
 - Switch access password protection
 - Layer 2 / 3 / 4 Access control Lists
 - RADIUS and TACACS+ Authentication
 - SSH / SSL Encryption

Management:
 - Web-based management interface
    - HTTP, HTTPS
    - Telnet (4 sessions)
 - Industry standard CLI with telnet, SSH or
    local management port
     - Scripting capability
     - Command completion
     - Context sensitive "Help"
 - Multiple levels of user privileges (CLI and Web UI)
 - SNMP v1/v2/v3
 - Four RMON Groups - (1, 2, 3 and 9)
 - Logging - syslog
 - Dual firmware images
 - Configuration file - upload / download

Dimensions:
 - 17.3" W x 18.6" D x 1.7" H
    (440mm W x 473mm D x 43mm H)

Power:
 - Dual 400W Hot-swap Redundant Power Supplies
 - Power Consumption of 375W

Operating Temperature:
 - 0° to 45°
SSE-X3348TSSE-X3348T
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
