Supermicro 2U 24Bays Dual 2nd Gen Scalable Processor Rackmount Server
- Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
- 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
- 2 PCI-E 3.0 x16 slots (FH, 10.5" L), 1 PCI-E 3.0 x8 slot (LP)
- 4 10GBase-T LAN ports with Intel X550
- 24 Hot-swap 2.5" drive bays; 24 NVMe (4 hybrid ports - SAS3 via opt. AOC), 2 rear Hot-swap 2.5" drive bays; 2 internal M.2 (1 SATA3, 1 NVMe); 1 M.2 NVMe port, Optional extra M.2 NVMe and SATA3 ports
- 4 Heavy duty 8cm PWM fans
- 1600W High efficiency (96%) Redundant PSU; Titanium Level
- Virtualization, Hyperconverge Storage, Cloud Computing, High End Enterprise Server
Storage configuration notice:
Hot-swap:
24x Hot-swap 2.5" drive bays: 24x NVMe (4x hybrid ports - SAS3 via opt. AOC)
2x rear Hot-swap 2.5" SATA drive bays
M.2:
1x M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110) or 1x M.2 M-Key SATA3 (2240/2260/2280/22110) via optional parts
2x M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2
Hot-swap:
24x Hot-swap 2.5" drive bays: 24x NVMe (4x hybrid ports - SAS3 via opt. AOC)
2x rear Hot-swap 2.5" SATA drive bays
M.2:
1x M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110) or 1x M.2 M-Key SATA3 (2240/2260/2280/22110) via optional parts
2x M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs and 6 NVMe).

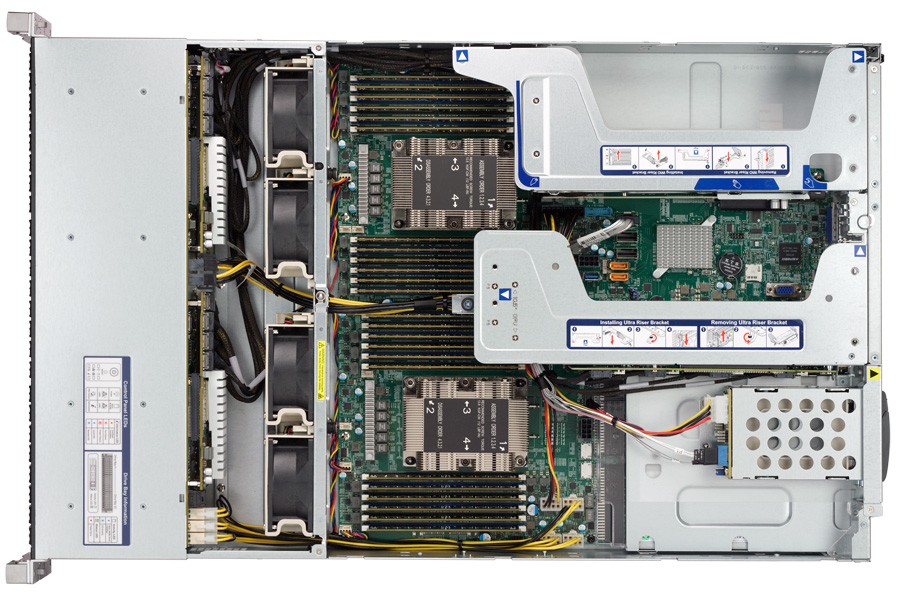

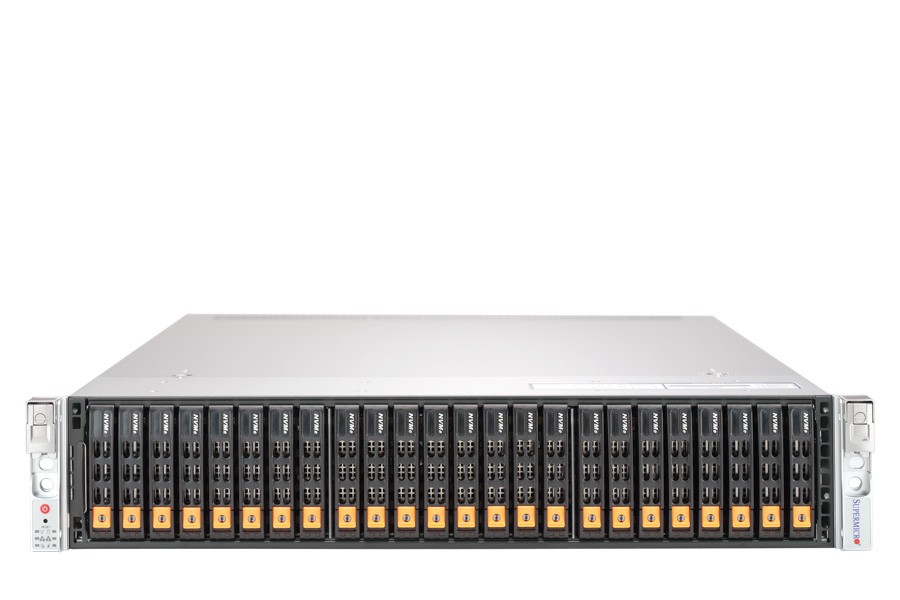

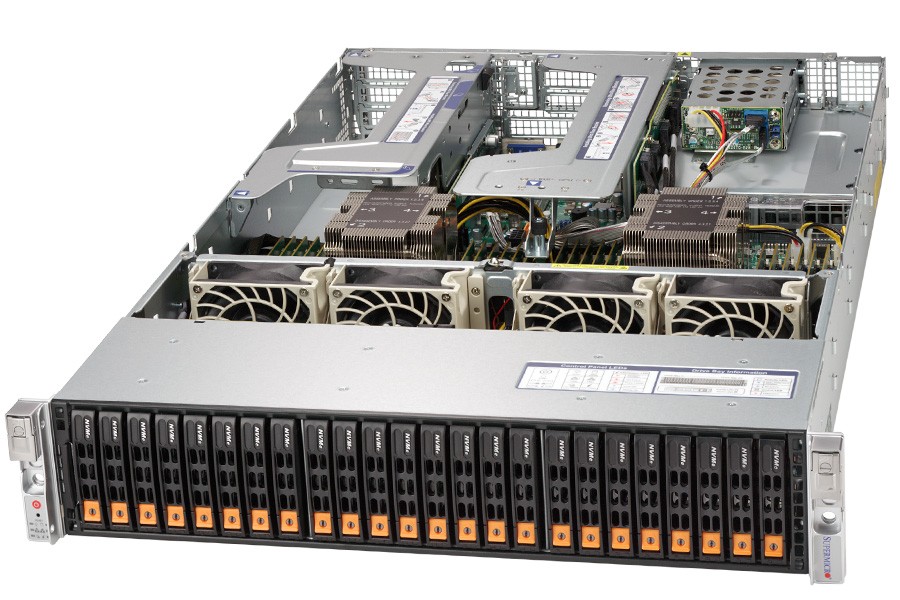

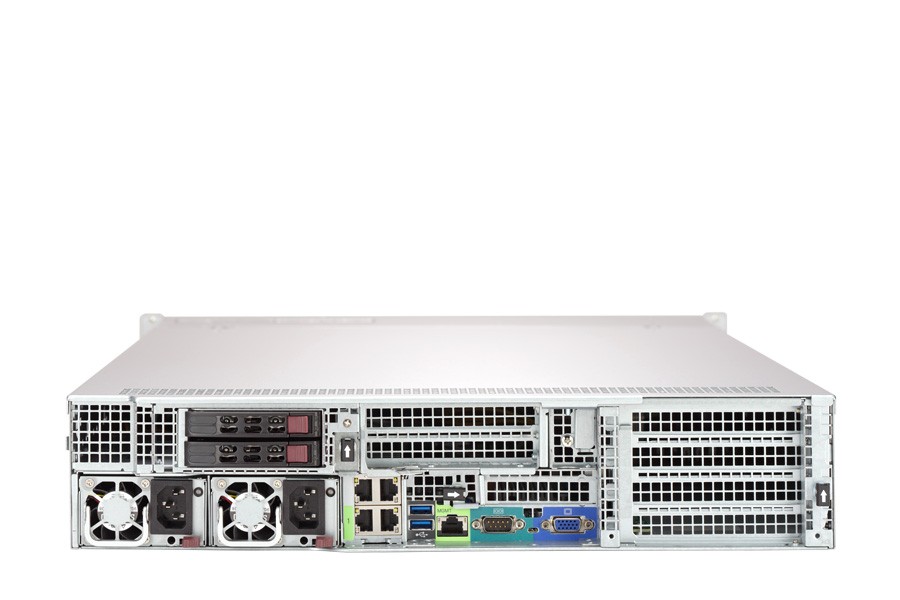

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU | SYS-2029U-TN24R4T |
Processor | CPU:
Dual Socket P (LGA 3647) 2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake), Dual UPI up to 10.4GT/s Support CPU TDP 70-205W Cores: Up to 28 Cores Note: BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors |
Memory | Memory Capacity:
24 DIMM slots Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM Supports Intel® Optane™ DCPMM Memory Type: 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM 2666 ECC DDR4 NVDIMM Note: 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro Cascade Lake only. Contact your Supermicro sales rep for more info. |
Chassis | 2U Rackmount Chassis
|
Dimensions | Width:
17.2" (437mm) Height: 3.5" (89mm) Depth: 27.76" (705.3mm) |
Front Panel | Buttons:
Power On/Off button System Reset button LEDs: Power status LED HDD activity LED Network activity LEDs System information (overheat/UID) LED |
Bios | BIOS Type:
AMI 32Mb SPI Flash ROM |
Onboard Devices | Chipset:
Intel® C621 chipset Storage: SATA3 (6Gbps); RAID 0, 1, 5, 10 per node Network Connectivity: 4x 10GBase-T ports via Intel® X550 Ethernet Controller 1x Realtek RTL8211E PHY (dedicated IPMI) IPMI: Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Graphics: ASPEED AST2500 BMC |
HDD Drive Bays | Hot-swap:
24x Hot-swap 2.5" drive bays: 24x NVMe (4 hybrid ports - SAS3 via opt. AOC) 2x rear Hot-swap 2.5" SATA drive bays M.2: 1x M.2 NVMe (2242/2260/2280/22110) 1x M.2 SATA (2242/2260/2280/22110) via optional SATA cable (Not supported if installing both NVMe & SATA M.2) |
Expansion Slots | 2x PCI-E 3.0 x16 (FH, 10.5" L)
1x PCI-E 3.0 x8 (LP) (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) |
Power Supply | 1600W Redundant Power Supplies with PMBus
Total Output Power: 1000W/1600W Dimension (W x H x L): 73.5 x 40 x 203 mm Input: 100-127Vac / 13 - 9A / 50-60Hz 200-240Vac / 10 - 8A / 50-60Hz +12V: Max: 83.3A / Min: 0A (100-127Vac) Max: 133A / Min: 0A (200-240Vac) 12Vsb: Max: 2.1A / Min: 0A Output Type: 25 Pairs Gold Finger Connector Certification: UL/cUL/CB/BSMI/CE/CCC Titanium Level |
Input Output | NVMe:
24x NVMe ports LAN: 4x 10GBase-T LAN ports 1x RJ45 Dedicated IPMI LAN port USB: 3x USB 3.0 ports (2 rear, 1 Type A) Video: 2x VGA ports (1 rear, 1 onboard) Serial Port / Header: 1x Serial port DOM: 2x SuperDOM (Disk on Module) ports |
Cooling | 4x Heavy duty 8cm PWM fans
|
Operating Environment | RoHS:
RoHS Compliant Environmental Spec.: Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Details | Management
Software:
Intel® Node Manager
Redfish API
IPMI 2.0
KVM with dedicated LAN
NMI
SSM, SPM, SUM
SuperDoctor® 5
Power Configurations:
ACPI Power Management
PC Health Monitoring
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors
|
CPU
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
