Supermicro 2U 4Nodes Dual Processor Rackmount Server

Supermicro 2U 4Nodes Dual Processor Rackmount Server

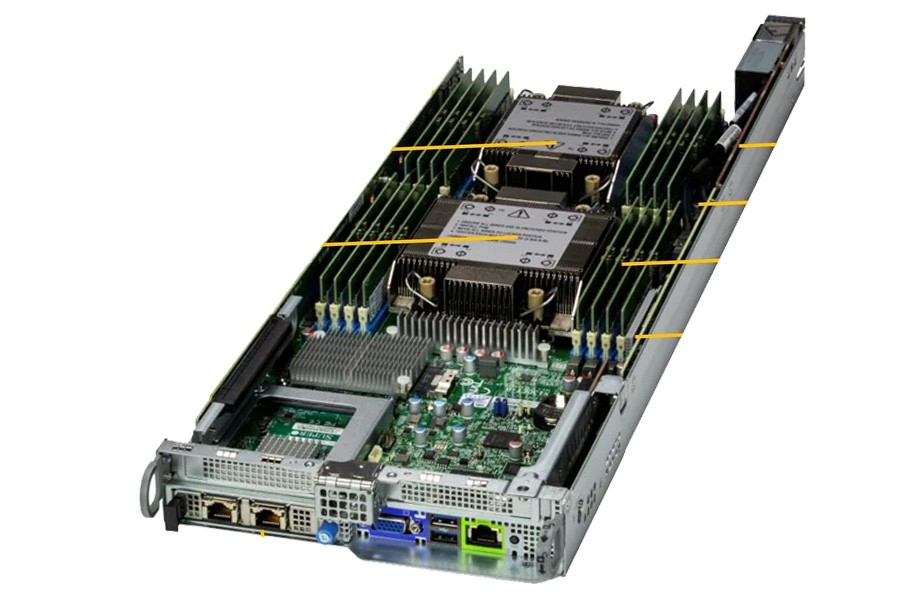

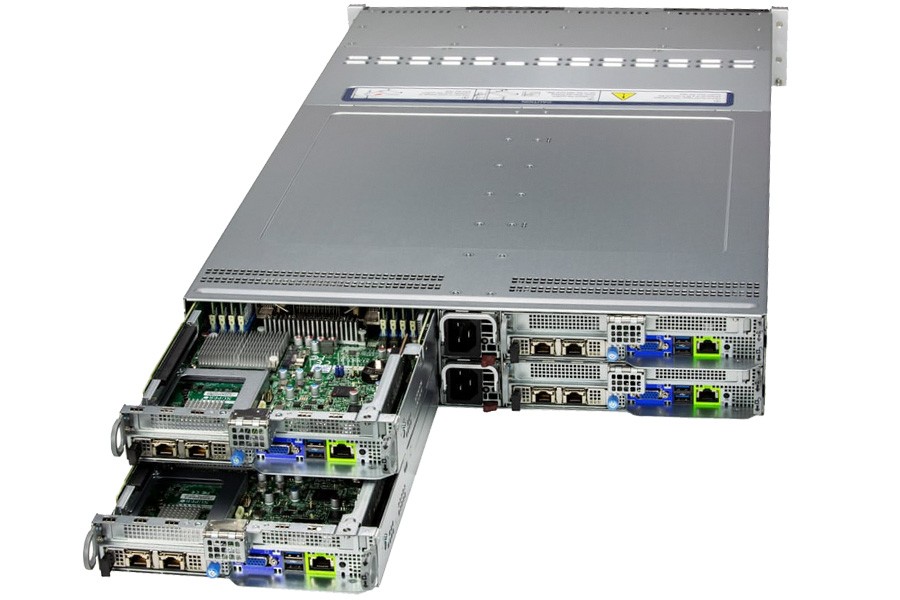

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

Socket E (LGA 4677) support 5th/4th Gen Intel® Xeon® Scalable processors
Intel® C741
16 DIMM Slots supporting up to 4TB of memory; ECC RDIMMs up to DDR5-5600
Internal PCIe 4.0 x8 for 2 M.2 NVMe support onboard: 2 PCIe 5.0 x16 (LP) slot; Tool-less support; Optional M.2 (22x80) HW RAID1 NVMe Boot Controller via SCC-A2NM2241G3-B1
Network connectivity via AIOM (OCP 3.0 compliant)
Built-in SAS3 Support via Broadcom 3808; IT Mode 3 hot-swap 3.5" drive bays (2x PCIe 5.0 NVMe/SAS and 1x PCIe 4.0 NVMe/SAS)
Liquid Cooling Support 4 cooling fans per 2U enclosure, 14.9K RPM; Shared Cooling Design
3000W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
Hyperconverged Infrastructure, Scale-Out File Storage, Container Storage

Storage configuration notice:
(per node)
External:

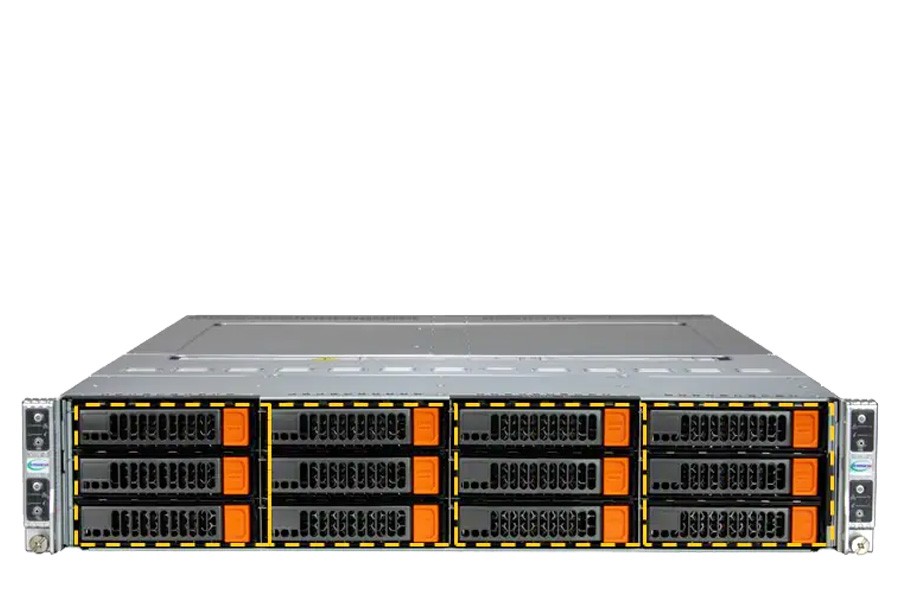

3x 3.5" Hot-swap Drive Bays
2x M.2
To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance, 16 DIMMs are recommended per node) Minimum 2 CPUs, 2 DIMMs, 1 NIC and 1 Drive per node.

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

SKU	SYS-621BT-HNC8R
Processor	(per Node) CPU: Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM) Core Count: Up to 64C/128T; Up to 320MB Cache per CPU Note: Supports up to 185W TDP CPUs (Air Cooled) Supports up to 350W TDP CPUs (Liquid Cooled) Air Cooled CPUs with TDP over 185W only supported under specific conditions. Contact a Supermicro representative for details.
Memory	(per Node) Memory: Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Chassis	2U Rackmount Chassis
Dimensions	Height: 3.47" (88mm) Width: 17.68" (449mm) Depth: 30.5" (774mm)
Front Panel	Buttons: Power On/Off button UID button LEDs: HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED
Bios	BIOS Type: AMI 32MB Flash ROM
Onboard Devices	(per Node) SAS: SAS3 (12Gbps) via Broadcom® 3808 (IT mode) Chipset: Intel® C741 Network Connectivity: Via AIOM IPMI: Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays	(per Node) Hot-swap: 3x 3.5" hot-swap NVMe/SAS drive bays (2x PCI-E 5.0 NVMe/SAS and 1x PCI-E 4.0 NVMe/SAS) M.2: 2 M.2 NVMe
Expansion Slots	(per Node) PCI-Express (PCIe): 2 PCIe 5.0 x16 LP slot(s)
Power Supply	3000W 1U Redundant Power Supply Total Output Power: 3000W : 208 - 240 Vac 3000W : 240 - 240 Vdc for CQC only Dimension (W x H x L): 45 x 40 x 480 mm AC Input: 1400W: 100-127Vac / 50-60Hz 2880W: 200-207Vac / 50-60Hz 3000W: 208-240Vac / 50-60Hz DC Input: 3000W: 240-240Vdc for CQC only/ 50-60Hz 12V SB: Max: 4.5A / Min: 0A Certification: Titanium Level

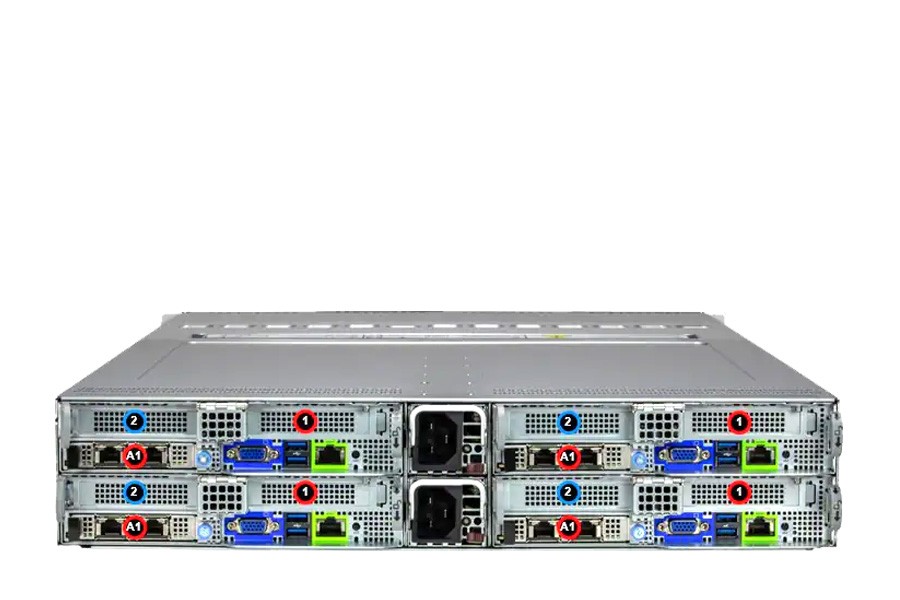

Input Output	(per Node) LAN: 1 RJ45 Dedicated BMC LAN port USB: 2 USB 3.1 port(s) (2 rear) Video: 1 VGA port(s) Others: 2x M.2 for boot drive or caching M.2 form factor: NVMe double-sided 22x110mm Note: Enterprise-grade M.2 only for caching application

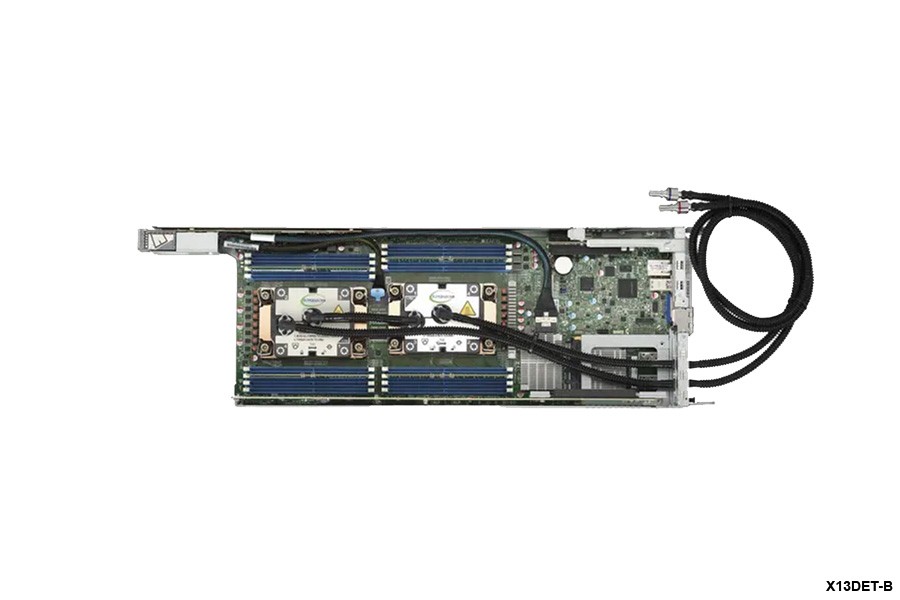

Cooling	Fans: 4x 14.9K RPM Heavy Duty 8cm Fan(s) Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional)
Operating Environment	RoHS: RoHS Compliant Environmental Spec.: Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Details	Management Software: Supermicro Out of Band (OOB) License (Included per Node) SuperCloud Composer SSM Intel® Node Manager SPM KVM with dedicated LAN IPMI 2.0 SUM Watch Dog SuperDoctor® 5 Power Configurations: ACPI / APM Power Management

+ CLICK TO ENLARGE

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

CPU-1st Node

Intel® Xeon® Scalable 5th Gen Bronze Processor 3508U (2.10 Ghz 125W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4510 (2.40 Ghz 150W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4509Y (2.60 Ghz 125W)

Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4510T (2.00 Ghz 115W)

Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4514Y (2.00 Ghz 150W)

Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)

Intel® Xeon® Scalable 5th Gen Gold Processor 5515+ (3.20 Ghz 165W)

Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)

Added

Intel® Xeon® Scalable 5th Gen Gold Processor 5512U (2.10 Ghz 185W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4516Y+ (2.20 Ghz 185W)

Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)

Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)

Memory-1st Node

Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Added

Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

CPU-2nd Node

*No Processor
