SBE-820H
Please Inquire Configured Summary
SBE-820H

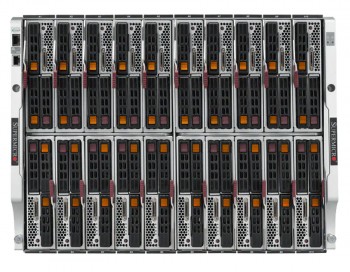

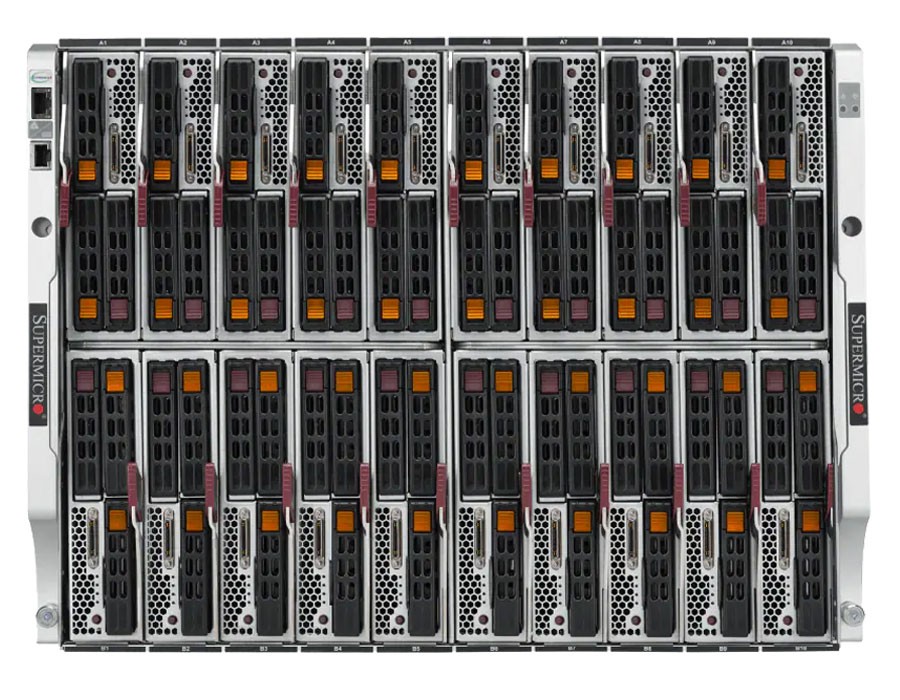

Supermicro Superblade up to 20 Hot-Plug Twin Processor Blade Enclosure

Available Models:
SBE-820H-822 - Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

SBE-820H-622 - Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SBE-820H
Details
Processor Blade:
Up to 20 half-height 2-socket blade servers

LED:
Power LED, Fault LED

Networking:
Infiniband HDR Switch – Support for 1x 200Gbps module
Ethernet Switch – Up to 2x modules
For compatibility, see the Blade Matrix or contact your Supermicro representative
Switch Modules must be purchased separately

Management Module:
1 CMM for remote system management with software
Management Module must be purchased separately

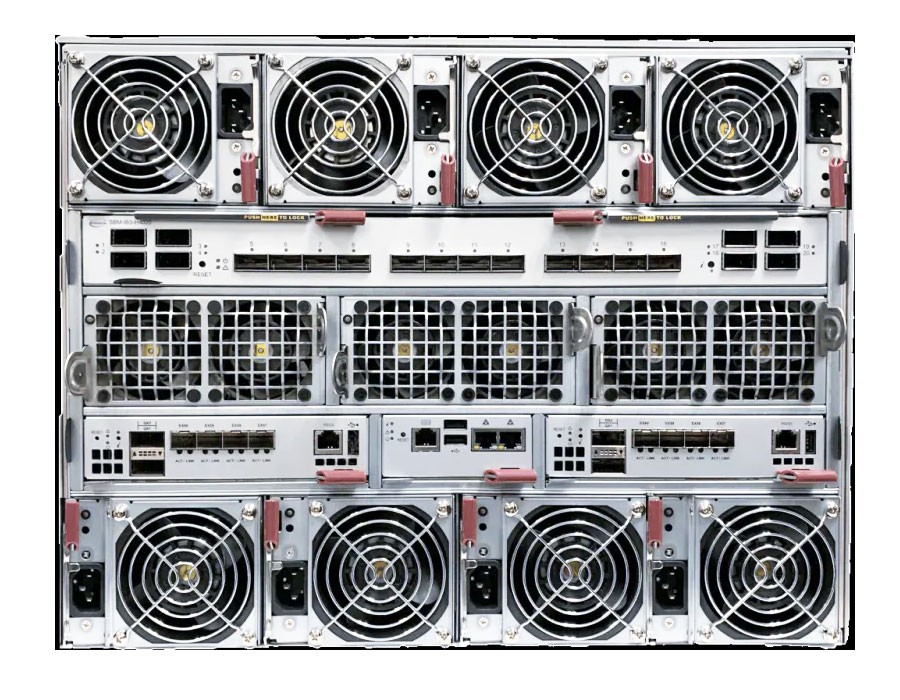

Power Supplies:
Up to 8 hot-plug 2200W Titanium power supplies

Cooling Design:
Up to 8 cooling fans in PWS modules
3 optional cooling fan modules (PWS-DF005-2F)

Dimensions (HxWxD):
14" x 17.6" x 32"

Available Models:
SBE-820H-822 - Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

SBE-820H-622 - Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies
SBE-820HSBE-820H
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
Blade Quantity Range : 20 Qty error!
*Please contact our sales for more blade options
- $0.00
SBI-411E-1G
SBI-420P-1C2N
SBI-420P-1T3N
SBI-421E-1T3N
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
