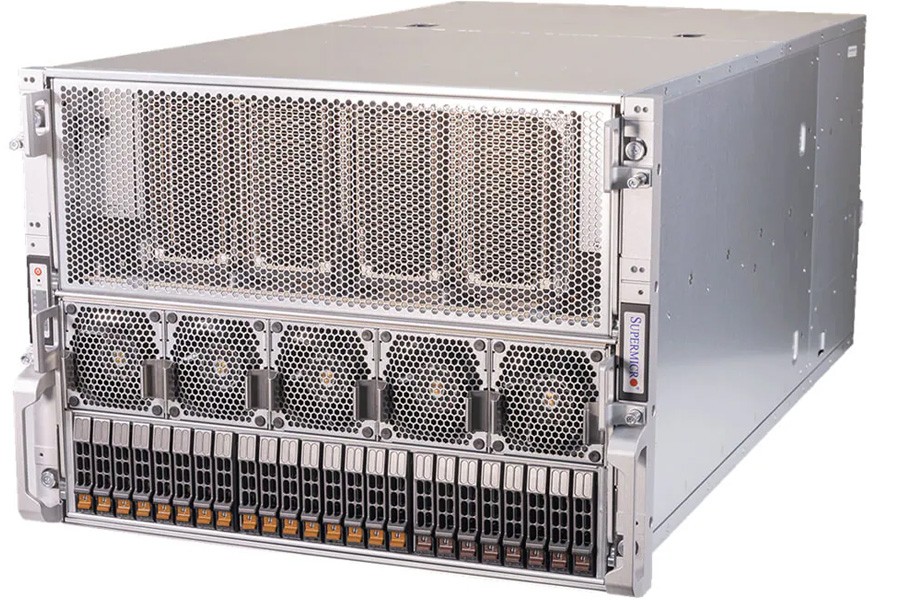

Supermicro 8U 18Bays Dual AMD Processor Rackmount Server

Supermicro 8U 18Bays Dual AMD Processor Rackmount Server

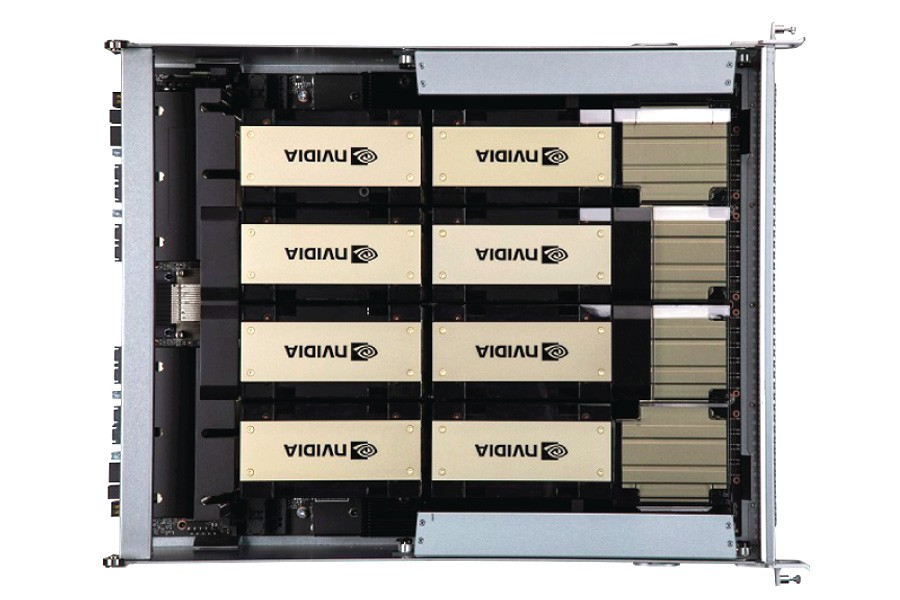

High density 8U system with NVIDIA® HGX™ H100 8-GPU, Highest GPU communication using NVIDIA® NVLINK™ + NVIDIA® NVSwitch™, 8 NIC for GPU direct RDMA (1:1 GPU Ratio)
24 DIMM Slots; Up to 6TB DRAM; 4800 ECC DDR5 LRDIMM;RDIMM;
8 PCIe Gen 5.0 X16 LP, and up to 4 PCIe Gen 5.0 X16 FHFL Slots
Flexible networking options
2x 2.5" Hot-swap SATA drive bays, 1 M.2 NVMe for boot drive only, up to 16x 2.5" Hot-swap NVMe drive bays (12 by default + 4 optional)
10 heavy duty fans with optimal fan speed control
6x 3000W redundant Titanium level power supplies
High Performance Computing, AI/Deep Learning Training, Industrial Automation, Retail, Climate and Weather Modeling

Storage configuration notice:
2x 2.5" SATA Drive
16x 2.5" NVMe Drive

1x M.2 drive
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs(minimum 48 cores per socket, 56 cores recommended), 1.5TB Memory for HGX-100 8GPU's, 1 Storage device, and 1 network device). Service: OSNBD3 is highly recommended.

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

SKU	AS-8125GS-TNHR

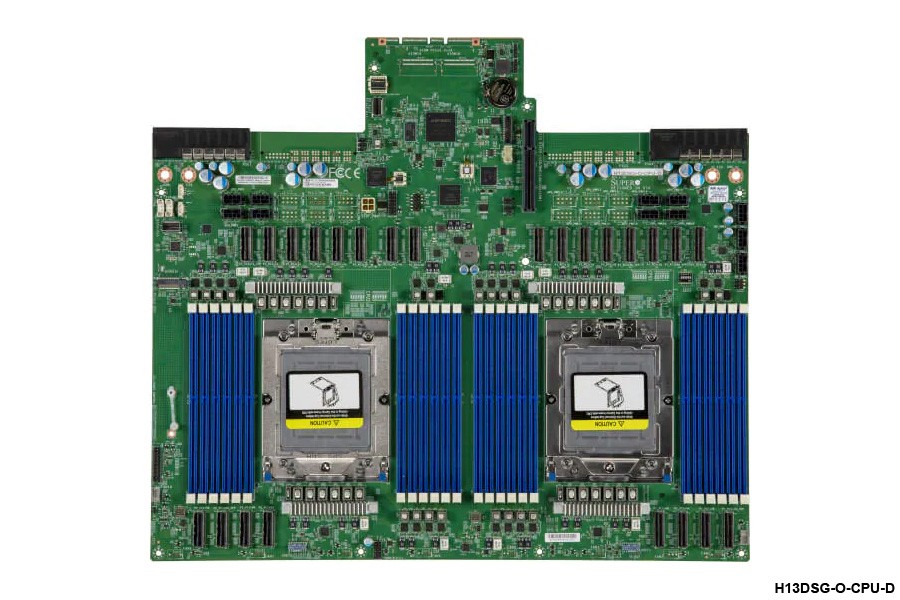

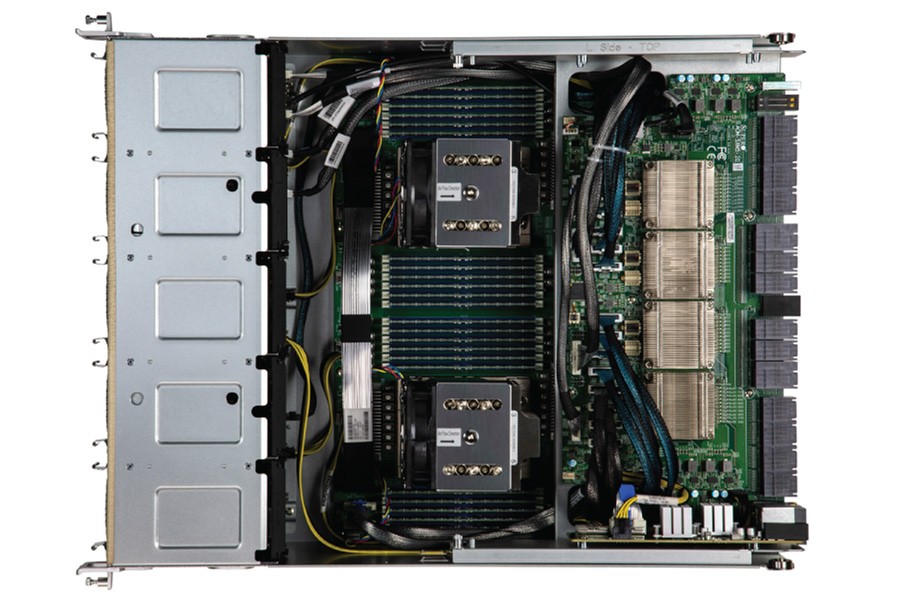

Processor	CPU: Dual Socket SP5 AMD EPYC™ 9004 Series Processors Core Count: Up to 128C/256T Note: Supports up to 400W TDP CPUs (Air Cooled) Max GPU Count: Up to 8 onboard GPU(s) Supported GPU: NVIDIA SXM: HGX H100 8-GPU (80GB) CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: NVIDIA® NVLink® with NVSwitch™
Memory	Memory: Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM/LRDIMM Memory Voltage: 1.1V
Chassis	8U Rackmount Chassis
Dimensions	Height: 14" (355.6 mm) Width: 17.2" (437 mm) Depth: 33.2" (843.28 mm)

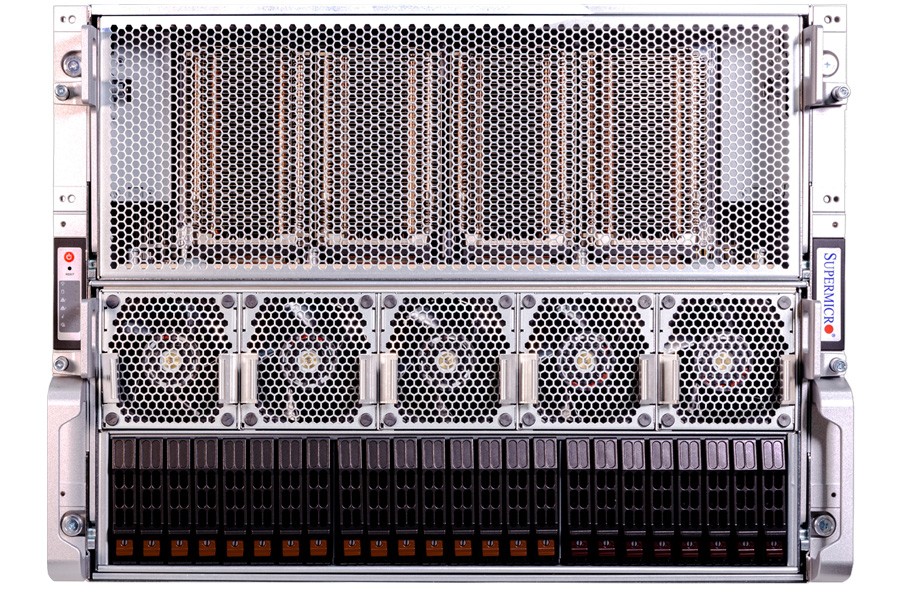

Front Panel	LED: Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED Buttons: Power On/Off button System Reset button
Bios	BIOS Type: AMI 32MB SPI Flash EEPROM
Onboard Devices	Chipset: AMD SP5 NVMe Network Connectivity
HDD Drive Bays	Drive Bays Configuration: Default: Total 18 bay(s) 2 front hot-swap 2.5" SATA drive bay(s) 4 front hot-swap 2.5" NVMe drive bay(s) 12 front hot-swap 2.5" NVMe drive bay(s) (NVMe support may require additional storage controller and/or cables) M.2: 1 M.2 NVMe slot(s) (M-key)
Expansion Slots	PCI-Express (PCIe) Configuration: Default 8 PCIe 5.0 x16 LP slot(s) 2 PCIe 5.0 x16 FHFL slot(s)

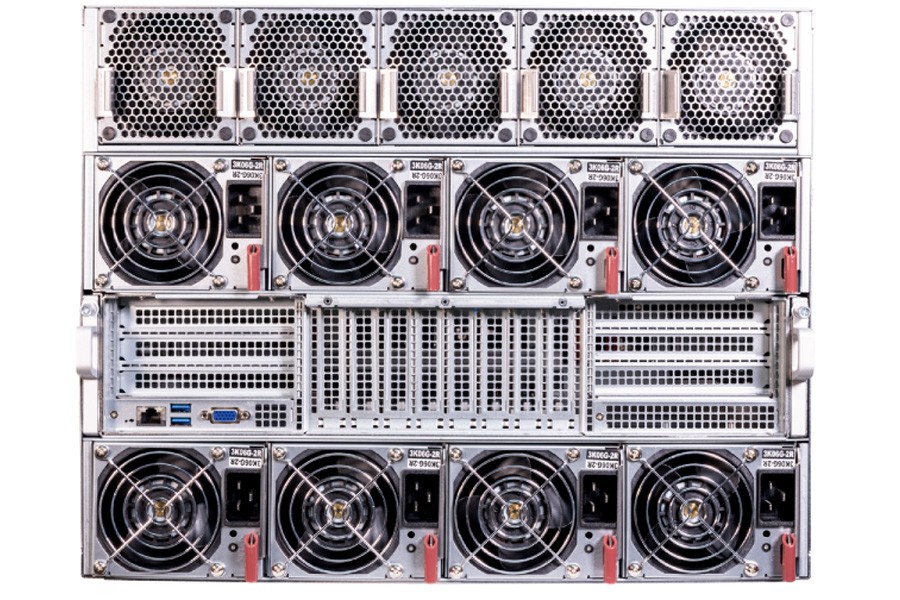

Power Supply	1x 3000W Redundant Titanium Level power supply Dimension (WxHxL): 106.5 x 82.1 x 245.5 mm +12V: Max: 91.66A / Min: 0A (200Vac-240Vac) 12V SB: Max: 3A / Min: 0A AC Input: 3000W: 207-240Vac / 50-60Hz Output Type: Backplanes (gold finger)
Input Output	Video: 1 VGA port(s)
Cooling	Fans: 10 heavy duty fans with optimal fan speed control
Operating Environment	Environmental Spec.: Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

+ CLICK TO ENLARGE

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

CPU

AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)

Added

AMD EPYC 4th Gen Processor 9174F (4.10GHz,320W)

AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9274F (3.40GHz,320W)

AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)

AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9354P (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9374F (3.85GHz,320W)

AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)

AMD EPYC 4th Gen Processor 9454P (2.75GHz,290W)

AMD EPYC 4th Gen Processor 9474F (3.60GHz,360W)

AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)

AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)

AMD EPYC 4th Gen Processor 9554P (3.10GHz,360W)

AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)

AMD EPYC 4th Gen Processor 9654 (2.40GHz,360W)

AMD EPYC 4th Gen Processor 9654P (2.40GHz,360W)

MEMORY

Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Added

Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Enterprise-Class HDD/SSD

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB

Added

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

NVMe M.2

*No NVMe M.2 Drives

Added

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB

Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB

Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB

WD Black SN850 M.2 G4 NVMe SSD 500GB

WD Black SN850 M.2 G4 NVMe SSD 1TB

WD Black SN850 M.2 G4 NVMe SSD 2TB

NVMe U.2/U.3

*No NVMe U.2 Drives

Added

Intel D7-P5520 NVMe U.2 SSD 3.84TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB

Micron 7450 PRO NVMe U.3 (15mm) SSD 1.92TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 3.84TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 7.68TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 15.36TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 800GB

Micron 7450 MAX NVMe U.3 (15mm) SSD 1.6TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 3.2TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 6.4TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 12.8TB

Samsung PM9A3 2.5" U.2 NVMe SSD 960GB

Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB

Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB

Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB

Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

RAID CONTROLLER CARD

*NO RAID Controller Card

Added

Broadcom 9500-8i SAS3/SATA/NVMe 8-Port HBA

Broadcom MegaRAID 9560-8i SAS3/SATA/NVMe 8-Port RAID Controller

LSI 9560-16I TRI MODE NVMe RAID CONTROLLER

Areca ARC-1886-8i 8 Ports SAS/SATA/NVMe RAID Controller Card

Areca ARC-1886-16i 16 Ports SAS/SATA/NVMe RAID Controller Card

Areca ARC-1886-8X8i 8+8 Ports SAS/SATA/NVMe RAID Controller Card

Broadcom MegaRAID 9580-8i8e SAS3/SATA/NVMe 8+8-Port RAID Controller

NETWORK CARD

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

Added

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

GPU/Coprocessor

*No GPU

Added

NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB

NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB

NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB

NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB

NVIDIA L40 48GB GDDR6 GPU Card

NVIDIA L40S 48GB GDDR6 GPU Card

NVIDIA A100 80GB HBM2e GPU Card

NVIDIA H100 80GB HBM2e GPU Card

OPERATING SYSTEM

Select Operating System:

*Please contact our sales for more operating system options

Added

Debian Linux (No Media) (32-Bit/64-Bit)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Workstation Edition 64-bit (No Media)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Microsoft Windows Server 2022 Standard 64-bit-1User

WARRANTY

Select Warranty:

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000
