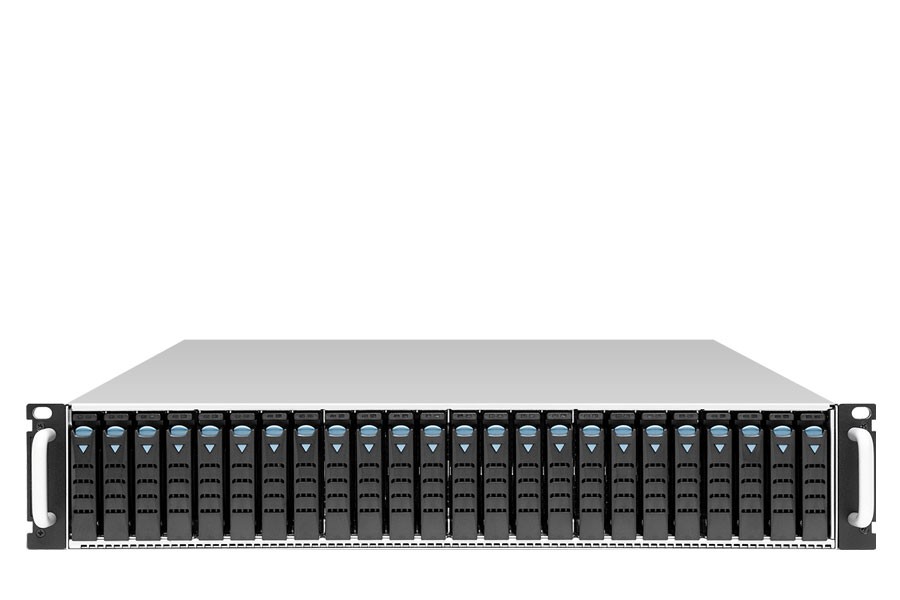

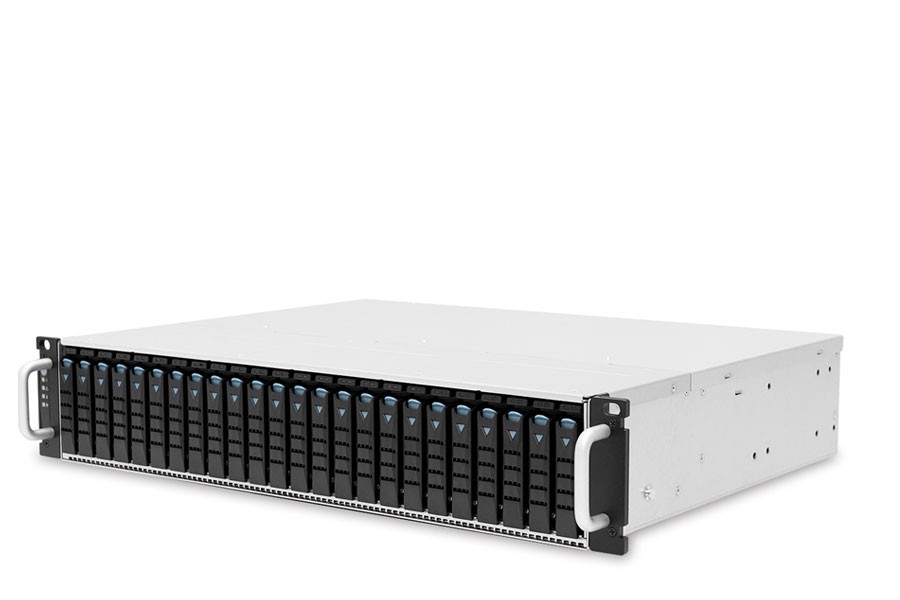

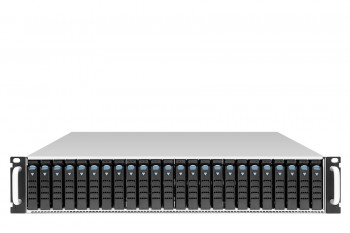

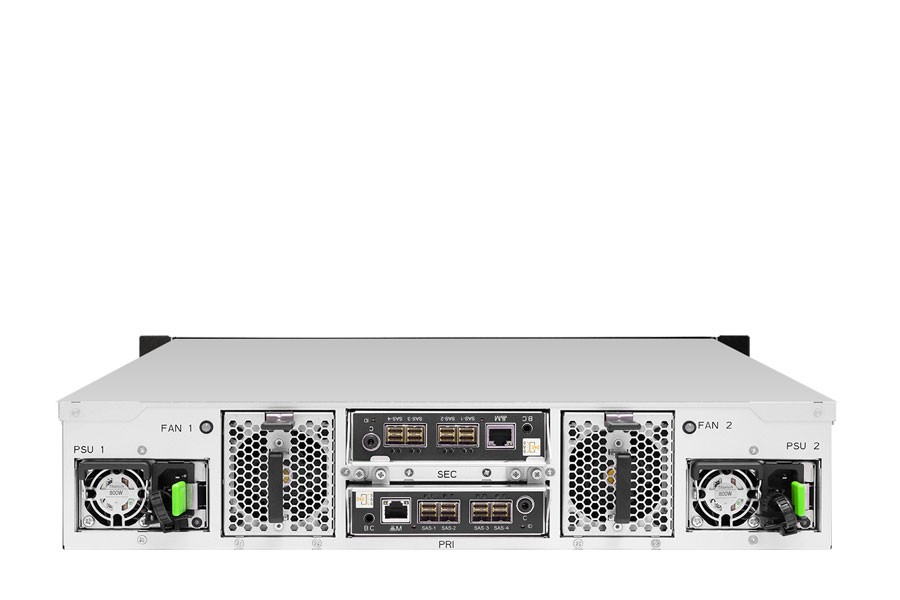

AIC 2U 24Bays Single SAS Expander JBOD
- Ruggedized design (Internal board to board connection)
- Tool-less design
- Hot-swap expander modules, drives, PSU, fans
- Short-depth
- Clear front panel LED indicators
- Optimized thermal solution
- BMC onboard
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| SKU | J2024-07-04X |
| Details | General
Number of Expander: Single Dual(Optional) Expander Chip: LSI SAS4X40 Host/Expansion Interface: 4 x Mini SAS HD (SFF-8674) per expander module (backward compatible with SFF-8644 SAS12G) Drives Supported Drive Interface : 24Gb &12Gb SAS if using dual expanders 24Gb & 12Gb SAS + 6Gb SAS/SATA if using single expander Form Factor: SFF 2.5" Administration / Management Admin/Firmware Upgrade: In-band & Serial port interface IEM port LED Indicators, Audible Alarm: Yes Hot swap & Redundancy Drive Bays: 24 hot swap Cooling: 2 x 60x56mm hot swap fans Power Supply (options): 800W 1+1 hot swap redundant power supply 80+ Platinum 800W 1+1 hot swap redundant power supply 80+ Titanium(Optional) Power Entry: Dual AC Inlet Expander Modules: Dual expanders (Optional) Electrical & Environment Universal A/C Input: 100~127V~,50/60Hz, 7.0A 200~240V~,50/60Hz, 3.5A Operating Environment: Temperature : 0ºC to 35ºC Relative humidity: 20% to 80% Non-operating Environment: Storage temperature : -20° ~ 60°C System relative humidity: 10% - 90% Physical Specification Dimensions (W x D x H): mm: 438 x 345 x 87.5 inches: 17.2 x 13.6 x 3.4 |
|
|
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
