Supermicro 1U 2Nodes 4Bays NVIDIA Grace CPU Rackmount GPU Server
This system currently supports two E1.S drives direct to the processor and the onboard GPU only.
Two nodes in a 1U form factor. Each node supports the following:
Two nodes in a 1U form factor. Each node supports the following:
- High density 1U 2-node GPU system with Integrated NVIDIA® H100 GPU (1 per Node)
- NVIDIA Grace Hopper™ Superchip (Grace CPU and H100 GPU)
- High Performance Computing, AI/Deep Learning Training and Inference, Large Language Model (LLM) and Generative AI
To maintain quality and integrity, this product is sold only as a completely-assembled system
System (SKU) ARS-111GL-DNHR-LCC
Processor and GPU Spec 72 Core Grace Processor with H100 96GB HBM3 on a Superchip X2
Memory 480GB LPDDR5 with 96GB HBM3 memory for GPU (included on Superchip) X2
Storage 14T TB raw capacity (2x 7.0 TB NVMe SSDs) X2
Boot Drives 2x 960 GB M.2 SSD X2
Networking 1x 400G HDR IB CX7 NICs (GPU Fabric) X2
| ARS-111GL-NHR | ||
| SMC Product ID | SMC Mat Descr | Qty |

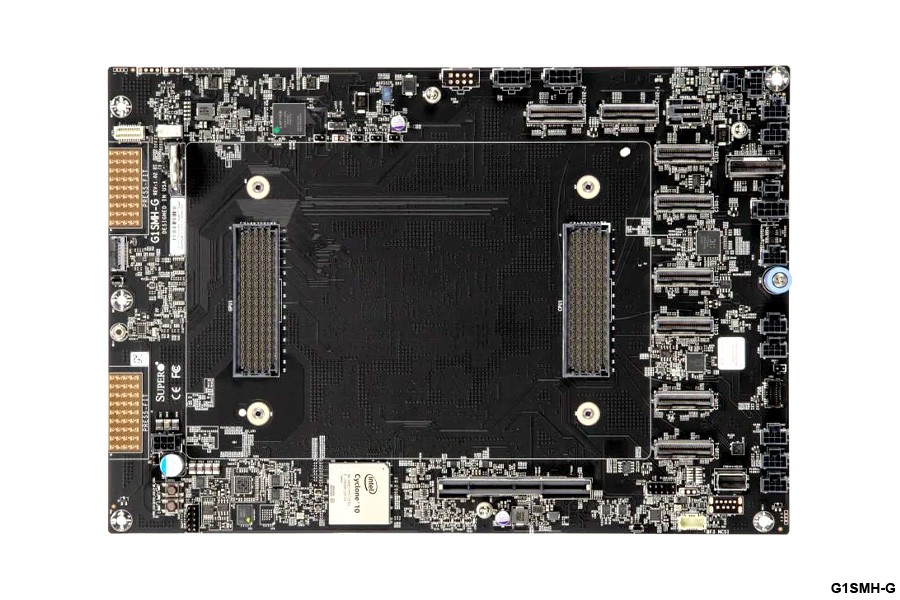

| ARS-111GL-DNHR-LCC | ARS-111GL-DNHR-LCC, MBD-G1SMH-G 1U ARM CG1 GEN5 PCIE | 1 |
| HDS-IEN0-SSDPFUKX076T1 | Intel D7-P5520 EDSFF E1.S PCIe 4x4TLC9.5mm 7.68TB <2DWPD | 4 |
| HDS-MMN-MTFDKBG960TFR1B | Micron 7450 PRO 960GB NVMe PCIe 4.0 M.2 22x110mm 3D TLC, | 4 |
| AOC-CX766003N-SQ0 | 900-9X766-003N-SQ0 1-p NDR 400G IB/ETH OSFP Crypto Disabled | 2 |
| GPU-NVGH480-12V | NVIDIA GH200, CG1, 480GB LPDDR5X CPU, 96GB HBM3 GPU, 12V | 2 |
| MC0037 | ASSEMBLY FEE | 1 |
| EWCSC | 0% 3 YRS LABOR, 3 YRS PARTS, 1 YR CRS UNDER LIMITED WRNTY | 1 |

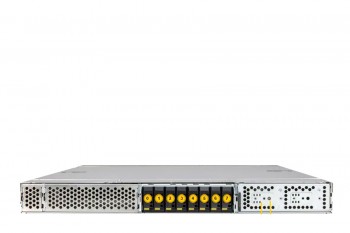

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| SKU | ARS-111GL-DNHR-LCC |
| Processor | (per Node)
CPU: NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip Note:
Supports up to 2000W TDP CPUs (Liquid Cooled) GPU
Max GPU Count: Up to 1 onboard GPU Supported GPU: NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper™ Superchip (Liquid-cooled) View GPU Options CPU-GPU Interconnect: NVLink®-C2C GPU-GPU Interconnect: PCIe |
| Memory | Slot Count: Onboard Memory
Max Memory: Up to 480GB ECC LPDDR5X Additional GPU Memory: Up to 96GB ECC HBM3 |
| Chassis | 1U Rackmount Chassis
|
| Dimensions | Height:
1.75" (44 mm) Width: 17.33" (440 mm) Depth: 37" (940 mm) |
| Bios | BIOS Type:
AMI 64MB SPI Flash EEPROM |

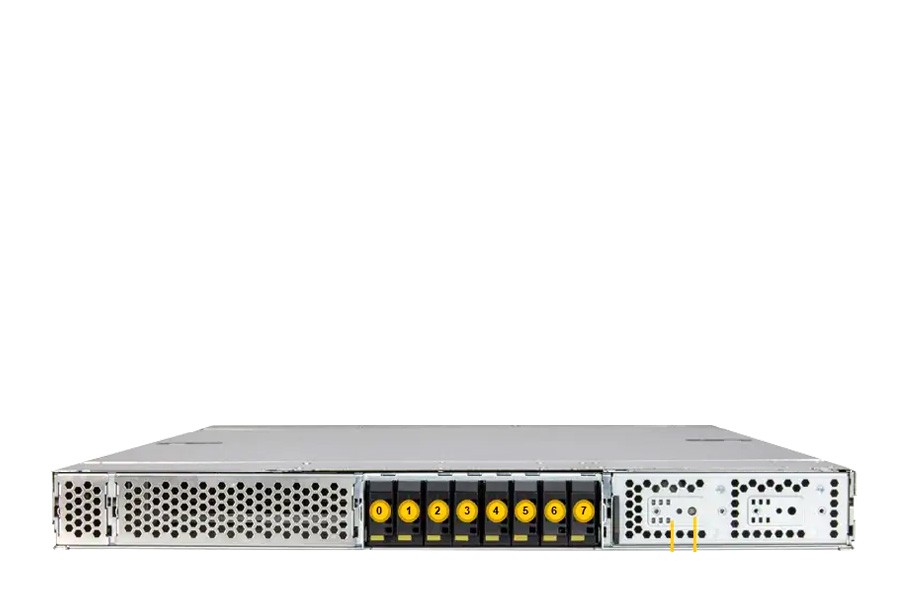

| HDD Drive Bays | Default:
Total 4 bays 4 front hot-swap E1.S NVMe drive bays M.2: 2 M.2 NVMe slots (M-key) |
| Expansion Slots | Default
2 PCIe 5.0 x16 FHFL slots |
| Power Supply | 2x 2700W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL): 73.5 x 40 x 185 mm Input: 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only) +12V: Max: 225A / Min: 0A (200Vac-240Vac) Max: 225A / Min: 0A (240Vdc-240Vdc) 12V SB: Max: 4A / Min: 0A Output Type: Backplanes (gold finger) |

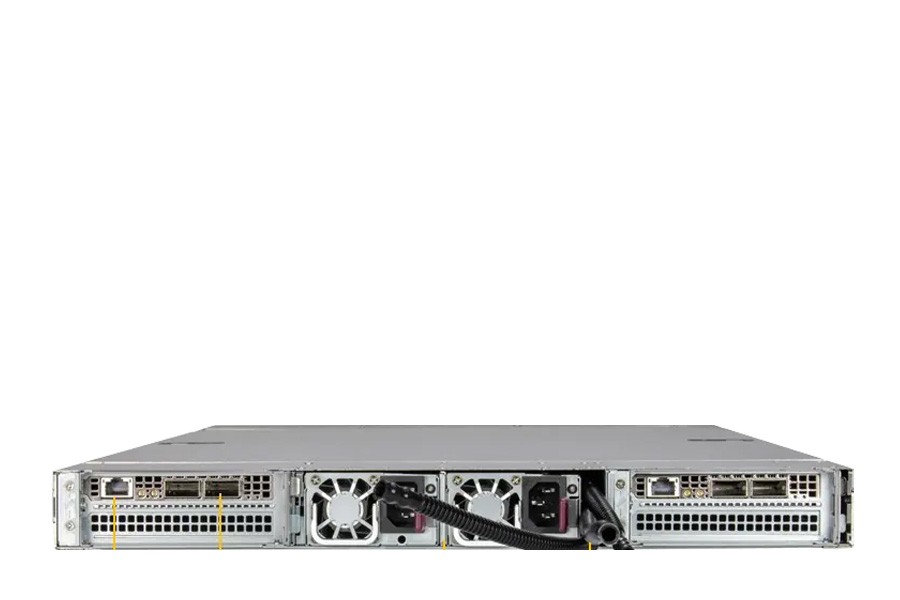

| Input Output | (per Node)
LAN: 1 RJ45 1 GbE Dedicated BMC LAN port USB: 2 ports(rear) Video: 1 mini-DP port |

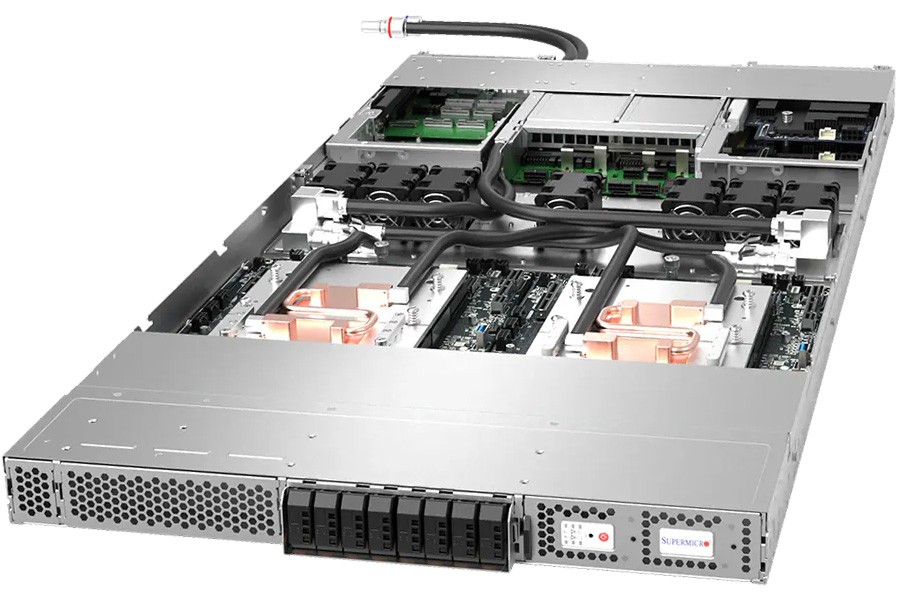

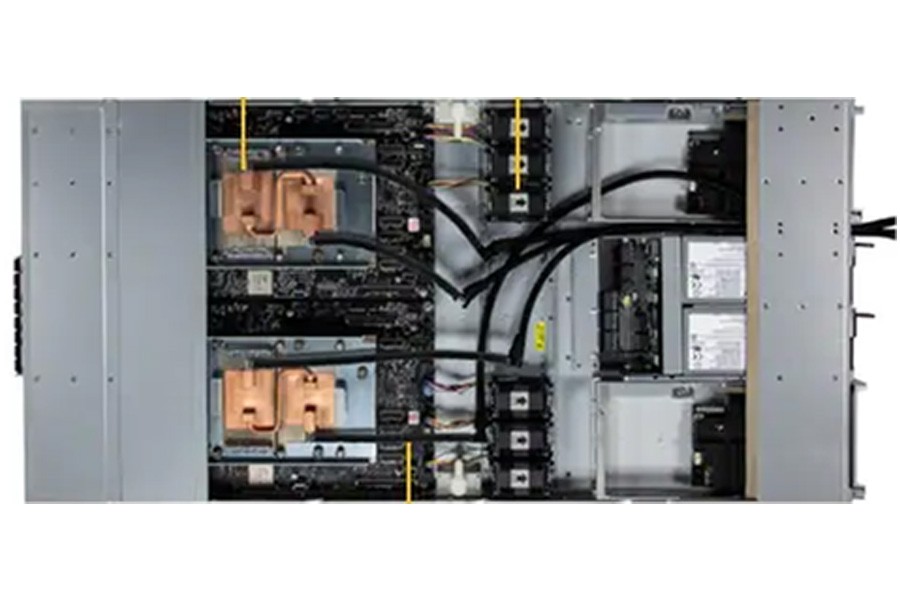

| Cooling | Fans:
7 Removable heavy-duty 4cm Fan(s) Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional) |
| Operating Environment | Environmental Spec.:
Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Details | Management
Power configurations: Power-on mode for AC power recovery ACPI Power Management PC Health Monitoring CPU: Monitors for CPU Cores, Chipset Voltages, Memory FAN: Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors |
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
