FT65TB8050-N

Please Inquire

Mitac/Tyan 4U 10Bays Single AMD Processor Rackmount Server

1S AMD Turin / Genoa / Bergamo / Genoa X CPU
8 DIMM slots w/ DDR5 6000 memory support
5 FH/10.5"L PCIe 5.0 x16 slots
Supports 2 DW x16 + 2 SW x16 GPU cards
8 3.5" SATA + 2 NVMe U.2 hot swap, tool less drive bays
2 NVMe M.2 22110 / 2280 slots
2 GbE + 1 IPMI ports
Single ATX12V PSU

Storage configuration notice:
2x 2.5" HDD Drive
8x 3.5" HDD Drive
2x M.2

SKU	B8050F65TV8E2H-N

Processor

Q'ty / Socket Type:
(1) AMD Socket SP5

Supported CPU Series:
(1) AMD EPYC™ 9004/9005 Series Processors

Thermal Design Power Wattage:
Max up to 320W (cTDP)

Memory

Supported DIMM Qty:
(8) DIMM slots

DIMM Type / Speed:
3DS RDIMM DDR5 6000MHz / RDIMM DDR5 6000MHz

Capacity:
Up to 2,048GB RDIMM/3DS RDIMM DDR5 6000 memory

Memory channel:
8 Channels per CPU

Memory voltage:
1.1V

Chassis

Workstation Server

Dimensions

Dimension (D x W x H):
25.5” x 16.8” x 6.9”
650mm x 427mm x 176mm

Front Panel

Buttons:
(1) ID / (1) PWR w/ LED / (1) RST

LEDs:
(1) HDD / (1) ID / (2) LAN / (1) System Event

I/O Ports:
(2) USB 3.0 ports

Bios	Brand / ROM size: AMI / 64MB Feature: Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.0/PnP/Wake on LAN / ACPI sleeping states S0, S5

Onboard Devices

LAN
Q'ty / Port:
(2) GbE ports + (1) GbE dedicated for IPMI
Controller:
Intel I210-AT
PHY:
Realtek RTL8211F

Storage SATA
Connector:
(10) SATA
Controller:
Direct from AMD EPYC CPU
Speed:
6Gb/s
RAID:
N/A

Storage NVMe
Connector (M.2):
(2) 22110/2280 (by PCIe Gen 4 interface)
Connector (U.2):
(2) 2.5"NVMe SSD

Graphic
Connector type:
D-Sub 15-pin
Resolution:
Up to 1920x1200
Chipset:
Aspeed AST2600

HDD Drive Bays

Q'ty / Type:
(2) 2.5" Hot-Swap NVMe HDD/SSDs / (8) 3.5" Hot-swap HDD/SSDs

Front Drive Bay Interface:
(2) SATA 6Gb/s / NVMe / (8) SATA 6Gb/s / SAS 12Gb/s

Front Drive Backplane Support:
SAS 12Gb/s /SATA 6Gb/s /NVMe

Notification:
The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact our technical support if a discrete SAS HBA/RAID adapter is required.

Expansion Slots

Physical Dimension Abbreviation:
FH/10.5”L (Full-height / 10.5” in length ): 4.4" x 10.5" (111.2 x 266.7mm)

Power Supply

Type:
ATX
Input Range:
AC 100~240V/15~12A
Frequency:
50/60 Hz
Output Watts:
1,200 Watts (100-115Vac input) / 1,500 Watts (115-200Vac input) / 2,000 Watts (200-240Vac)
Efficiency:
80 plus Gold (200-240Vac) / 80 plus Platinum (100-200Vac)

Input Output

USB:
(2) USB3.0 ports (@ rear)

COM:
(1) DB-9 COM port

VGA:
(1) D-Sub 15-pin port

RJ-45:
(2) GbE ports + (1) dedicated GbE for IPMI

Button:
ID Button

Cooling

(2) 8038 exhausted fans module at rear / (3) easy-swap 12038 fans

Operating Environment

Operating Temp.:
10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp.:
- 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity:
90%, non-condensing at 35° C

Details

TPM (Optional)

TPM Support:

Please refer to our TPM supported list.

Interface:

SPI

System Monitoring

Chipset:

Aspeed AST2600

Temperature:

Monitors temperature for CPU & memory & system environment

Voltage Monitors voltage for CPU, memory, chipset & power supply

LED:

Over temperature warning indicator / Over voltage warning indicator

Others:

Watchdog timer support

Server Management

Onboard Chipset:

Onboard Aspeed AST2600

AST2600 iKVM Feature:

24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub

AST2600 IPMI Feature:

IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

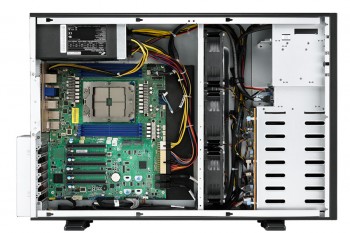

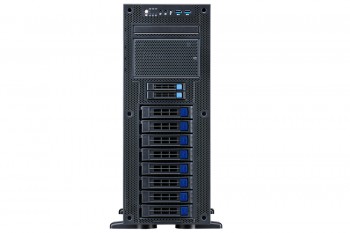

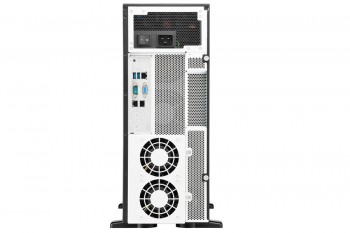

PHOTOS
