EB201-ID

Please Inquire

OVERVIEW

AIC 2U 4Bays Dual Processor Rackmount Server

2U edge server
Supports Intel® Xeon® 6 Scalable processors
Short-depth design for space critical applications
Easy maintain riser PCIe cards

Storage configuration notice:
External:
4x 2.5" Hot-swap Drive Bays

SPECIFICATIONS

SKU

EB201-ID

Processor

Processor Support:
Intel® Xeon® 6 processors 6500/6700 series CPU
Please contact Technical Support for more info/details about optimized CPUs and specialized system

Memory

DDR5
6400MHz (1DPC RDIMM)
8000MHz (1DPC MCR)

Total 16 memory slots; 8 slots per CPU (1DPC)
Supports up to 4TB (3DS RDIMM)

Chassis

2U Rackmount Chassis

Dimensions

(W x D x H)
mm: 438 x 450 x 88
inches: 17.2 x 17.7 x 3.5

Front Panel

System power on/off
System ID
System reset
2 x USB 3.0 Type A

LEDs
Power status
System alert
LAN activity
Drive activity
System ID

Bios	BIOS Type: AMI / SPI (Serial Peripheral Interface) FLASH interface BIOS Features: ACPI PXE WOL AC loss recovery IPMI 2.0 KCS interface SMBIOS Serial console redirection BIOS boot specification BIOS recovery mode SRIOV TPM

Onboard Devices

SATA:
2 x SATA 7-pin connectors with ASM1062R SATA 6Gbps Controller (Supports RAID 0, RAID 1, SPAN)

IPMI:
Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor
Baseboard Management Controller
Intelligent Platform Interface 2.0 (IPMI 2.0)
iKVM, Media Redirection, IPMI over LAN, Serial over LAN
SMASH support

Network Controllers:
2 x 10G Base-T/1GbE RJ45 connectors with Broadcom BCM57416 + BCM5720L co-design

Graphics:
Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor
PCIe VGA/2D Controller
1920x1200@60Hz 32bpp

HDD Drive Bays

External:
4 x 2.5" hot-swap (SATA/SAS/NVMe)

Expansion Slots

3 x PCIe X16 slots (HHHL)

Power Supply

800W 1+1 redundant power supply 80+ Platinum/Titanium

Input Output

Rear I/O
LAN:
2 x 10G Base-T/1GbE RJ45 connectors with BCM57416/BCM5720L
1 x dedicated BMC management port with RJ45 connector

USB:
2 x USB 3.0 Type-A connectors

Video Output:
1 x DB-15 VGA connector

Serial Port:
1 x COM connector (by Audio Jack)

Cooling

4x 60x38mm easy swap fans

Operating Environment

Storage temperature: -10°C(14°F) ~ 60°C(140°F)
Operating temperature: 0°C(32°F) ~ 35°C(95°F)
Storage operating humidity: 5%~95% non-condensing

Details

System Management
IPMI 2.0
KVM over IP
Media redirection
Temperature, fan, voltage, PSU sensor monitor
System temperature
SNMP support
System ID / System fail indicator
Remote power on/off/reset
SEL message alarm through mail
Intel NM

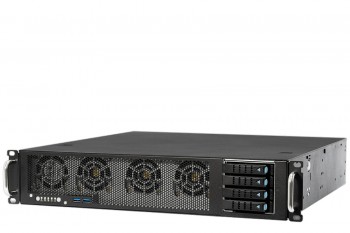

PHOTOS

EB201-ID

MY CONFIGURATION

CPU

Intel® Xeon® 6 6700 Series Processors 6731E (2.20 GHz 250W)

Intel® Xeon® 6 6700 Series Processors 6740E (2.40 GHz 250W)

Intel® Xeon® 6 6700 Series Processors 6756E (1.80 GHz 225W)

Intel® Xeon® 6 6700 Series Processors 6710E (2.40 GHz 250W)

Added

Intel® Xeon® 6 6700 Series Processors 6746E (2.00 GHz 250W)

Intel® Xeon® 6 6700 Series Processors 6766E (1.90 GHz 250W)

Intel® Xeon® 6 6700 Series Processors 6780E (2.20 GHz 330W)

MEMORY

Samsung 32GB DDR5 6400MHz ECC RDIMM Memory

Added

Samsung 64GB DDR5 6400MHz ECC RDIMM Memory

Samsung 96GB DDR5 6400MHz ECC RDIMM Memory

Enterprise-Class HDD/SSD

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB

Added

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB

NETWORK CARD

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Broadcom BCM957508-N2100G Dual-Port 100 Gb/S (QSFP56/28) Network Adapter

Supermicro AOC-A100G-M2CM ConnectX-6 Dx 100GbE Network Card

Supermicro AOC-STGS-I2T-O x550-AT2 2-Port 10GbE PCI-E 3.0 Ethernet Card

NVIDIA 900-9X766-003N-SQ0 1-Port ConnectX-7 400G Network Adapter

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

*No Network Card

Added

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Workstation Edition 64-bit (No Media)

Debian Linux (No Media) (32-Bit/64-Bit)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Microsoft Windows Server 2022 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000

Please Inquire
	ADD TO QUOTE
